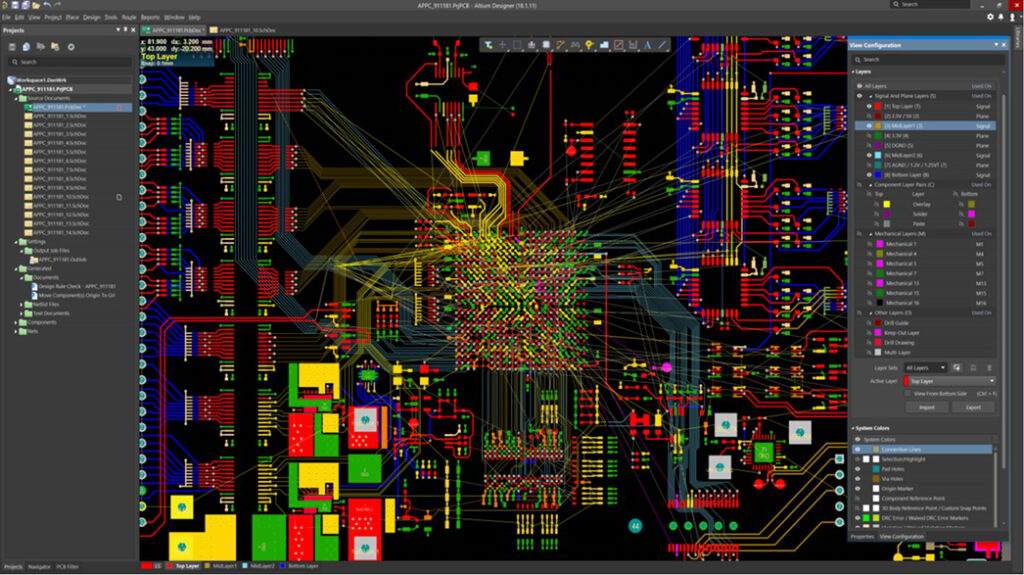

PCB Layout

We also offer

PCB Repair

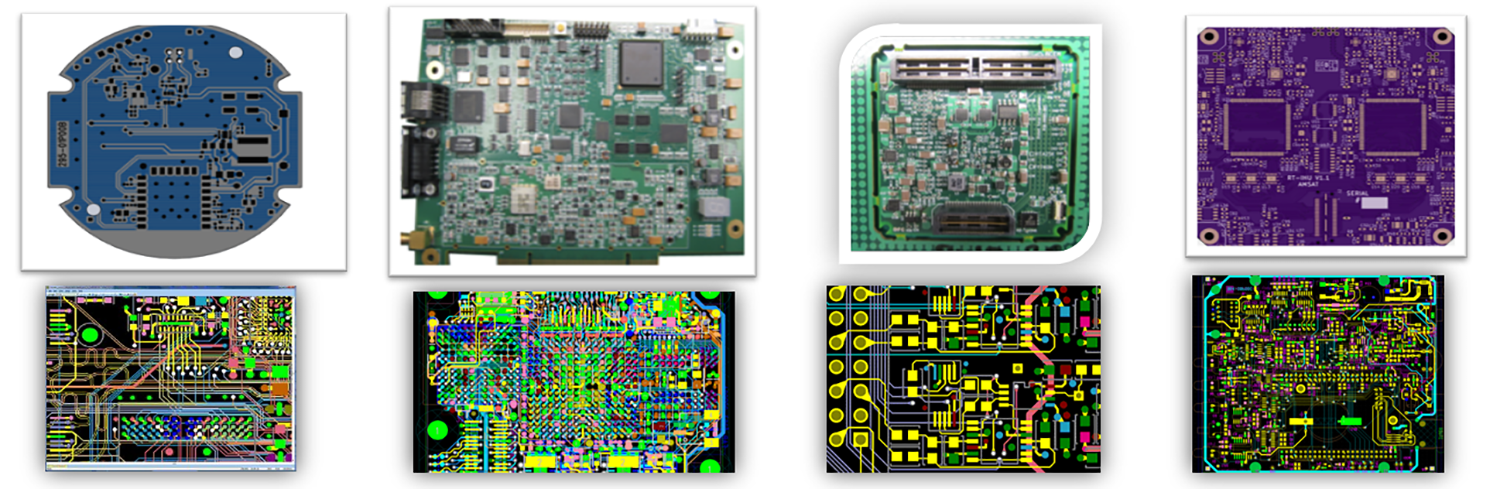

Scaled PCB Board
Scaled PCB Image
Scaled PCB Image
Slide 3 at Angle Image
Slide 2 Image Angled

22 layers, mixed military-qualified cored conduction coded cards rated to 400 Gs.

9 DSPs on a PCI card and 8 DSPs on a VME card.

High-temperature downhole tools, the U.S. Navy’s Light Hybrid Torpedo, and applications in outer space for a medical experiment controller in the space station.
  • Mentor PADS LAYOUT
  • Schematic Entry
  • High SpEED to 40 Ghz
  • Solidworks
  • Orcad Capture/ALTIUM/PADS Logic
  • Signal Integrity/Power Integrity
  • CAM 350
  • Autocad
Analog Board Image
